Mortise locks, long valued for their durability and security, are increasingly being electrified to meet the needs of modern access control systems. Electrification allows for more sophisticated control over who can enter and exit a building, making it a useful in many scenarios.

Command Access offers both electrified and motorized mortise lock options, catering to the specific needs of each application. Whether it's for new installations or retrofitting existing doors, Command Access provides robust solutions for your project and budget.

Electrified Mortise Locks

  • ML05 - Electrified Corbin Russwin ML2000 Series Mortise Lock

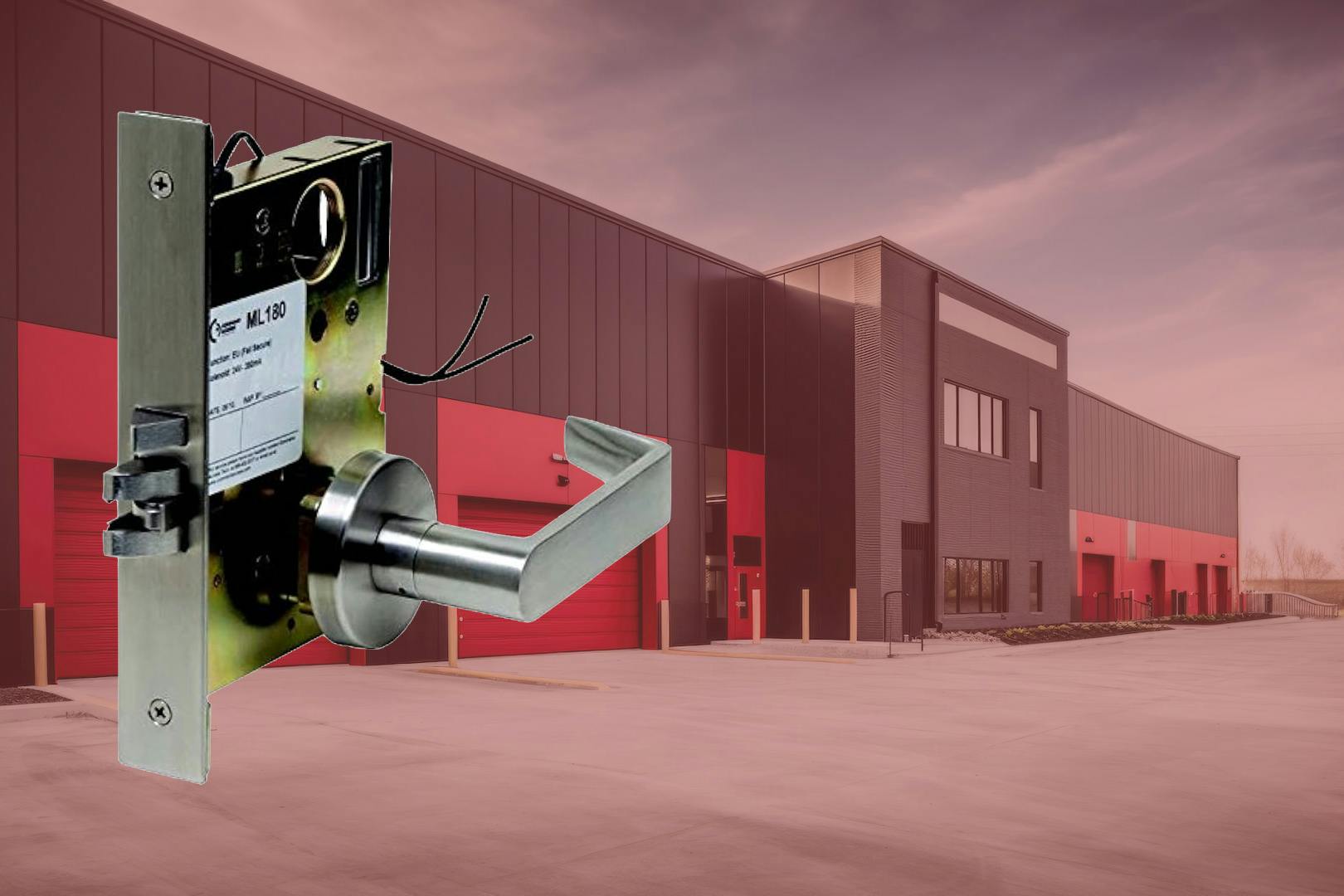

  • ML180 - Electrified Solenoid Schlage L9000 Retro Mortise Lock
  • ML37 - Electrified Sargent 8200 Series Mortise Lock
  • ML45 - Electrified Best 45H Series Mortise Lock
  • ML80 - Electrified Schlage L9000 Series Mortise Lock
  • ML90 - Electrified Yale 8800 Series Mortise Lock
  • ML808 - Electrified Cal Royal 'M' Series Mortise Lock
  • MRC1 - Electrified Best 35, Cal Royal 8000, Corbin Russwin 2000, and Falcon MA Series Mortise Lock Retrofit Chassis

For these products, you can opt for a complete lock, a chassis only, or modifications to existing hardware, providing flexibility in how you implement them. Their continuous duty solenoids are designed for "continuously on" applications, these solenoids allow for Fail Safe scenarios or unlock cycles.

With the inclusion of a plug-in bridge rectifier, these locks can accommodate both AC and DC power sources, offering versatility in installation and operation. They are also made to have a low current draw, reducing energy consumption and operating costs.

All handing is field reversible, allowing for easy adjustments and installations without needing special tools or parts.

Functions

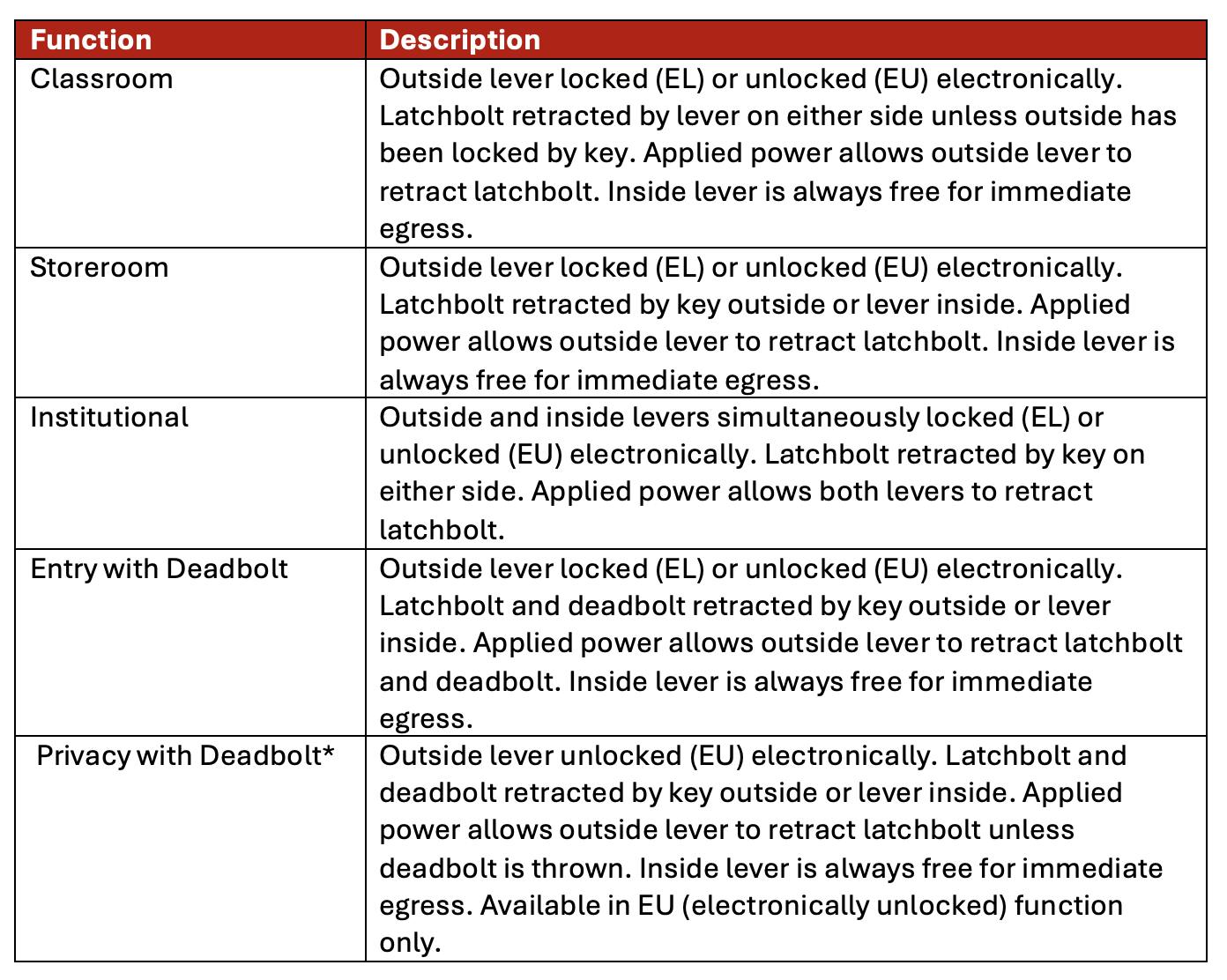

Mortise Functions

*The privacy with deadbolt function allows for the outside lever to retract the latchbolt when power is applied, but privacy is guaranteed when the deadbolt is engaged—a security solution that is unique for the industry.

Motorized Lever Control

  • ML190 - Motorized Lever Control - Retrofits Schlage L9000 series
  • ML90-M - Motorized lever control ML190 (L9000) retrofit series mortise lock

Command Access’ motorized lever control products’ continuous duty motor allows for energy savings on “continuously on” applications such as Fail Safe or an unlock cycle. With a design that minimizes power consumption, these motorized lever controls are perfect for POE systems. The true cycle feature ensures that the motor always returns to its original position, even if there's a power drop.

Changing between Electrically Unlocked (EU) and Electrically Locked (EL) modes is simplified with a push-button mechanism. This feature eliminates the need for cutting wires. They also feature the ability to switch from EU to EL or vice versa without any power present. This is Ideal for new installations where the system is not online yet.

Motorized Latch Retraction & Solenoid Electrified Latch Retraction

  • LPM190 - Command Access Motorized Latch Retraction Mortise Lock

The LPM190 features a CAT-designed custom motor assembly that maximizes pulling force while reducing surge. This design supports long wire runs and allows multiple locks to operate from a single power supply. The LPM190 features independent lever control and latch retraction offering specialty functions unique to the industry for the first time.

This lock uses standard ‘type 86’ door prep and can retrofit to Schlage L9000 compatible trim. It’s ideal for various applications including push-pull conditions, handicap access, single-occupancy restrooms, and automatic operators without panic devices. Built-in Request-to-Exit (REX) and Lock Bypass Monitoring (LBM) switches are also available.

Functions

Mortise Functions

Learn More

Command Access provides a wide range of mortise locks to meet different project demands. All Command Access products come with a no-hassle 3-year warranty, ensuring peace of mind and long-term reliability. Reach out with any questions and we’d be more than happy to help.
