Command Access · Von Duprin 996L Exit Trim

It's Alive: Introducing the ETK-M-VD996

No more shocking surprises with voltage or function — this electrification kit has been engineered in the lab to think for you. Field-installable and smart enough to sense 12 or 24V input, it seamlessly flips between EU and EL.

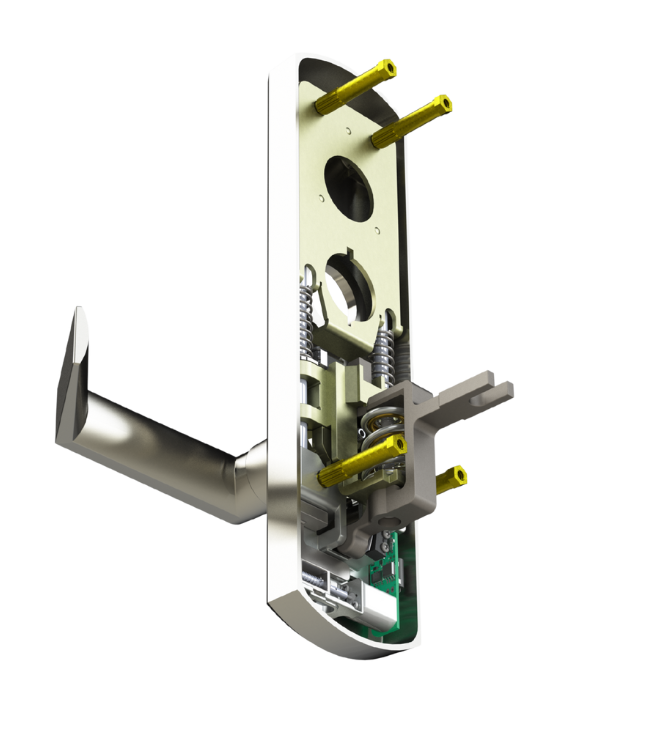

ETK-M-VD996 internal mechanism — motorized electrification kit

11–30 VDCAuto-sensing

300 mAPeak current

15 mAHold current

EU ↔ ELField selectable

3-YearNo-hassle warranty

The Creation

Sparked to life in the U.S.A.

And when it comes to those monstrous CHEXIT installs? The ETK-M-VD996 comes prepared, with a built-in Request to Enter switch already stitched in.

Designed, assembled, and sparked to life right here in the U.S., this kit is as reliable as the bolts that hold it together — and as installer-friendly as any creation could be.

Best of all, it's backed by our 3-Year No-Hassle Warranty — because headaches belong in the mad scientist's lab, not on your jobsite.

No-hassle warranty, Made in USA, Motor driven, UL certified

View this short overview of the ETK-M-VD996

Features

Motorized Lever Control
Field Selectable EU ↔ EL
Built-in Auto-Sensing 11–30 Volt Range
Request-to-Enter Switch
Low Current Draw (Ideal for POE)
Field Reversible Handing
3-Year No-Hassle Warranty

Specifications

Voltage Range11–30 VDC
CurrentPeak 300mA · Hold 15mA
Cable6' Quick Connect
MotorContinuous duty · energy saving
Field SelectableFail Safe (EL) ↔ Fail Secure (EU)
POECompatible

How to Order

ETK-M-VD996[REE][QC | CON | BC]

Base part number is ETK-M-VD996. Add the suffixes the job needs. EU/EL is not in the order string — every unit is field selectable with a flip of a switch on the unit (ships Fail Secure / EU by default).

ETK-M-VD996 — standard kit, no add-ons (Easy Order #77148)
ETK-M-VD996 REE — CHEXIT-ready with factory REE (Easy Order #77149)

Suffix legend: REE Request to Enter (CHEXIT) | QC Assa Electrolynx | CON Allegion CON | BC Dormakaba Best Connectors

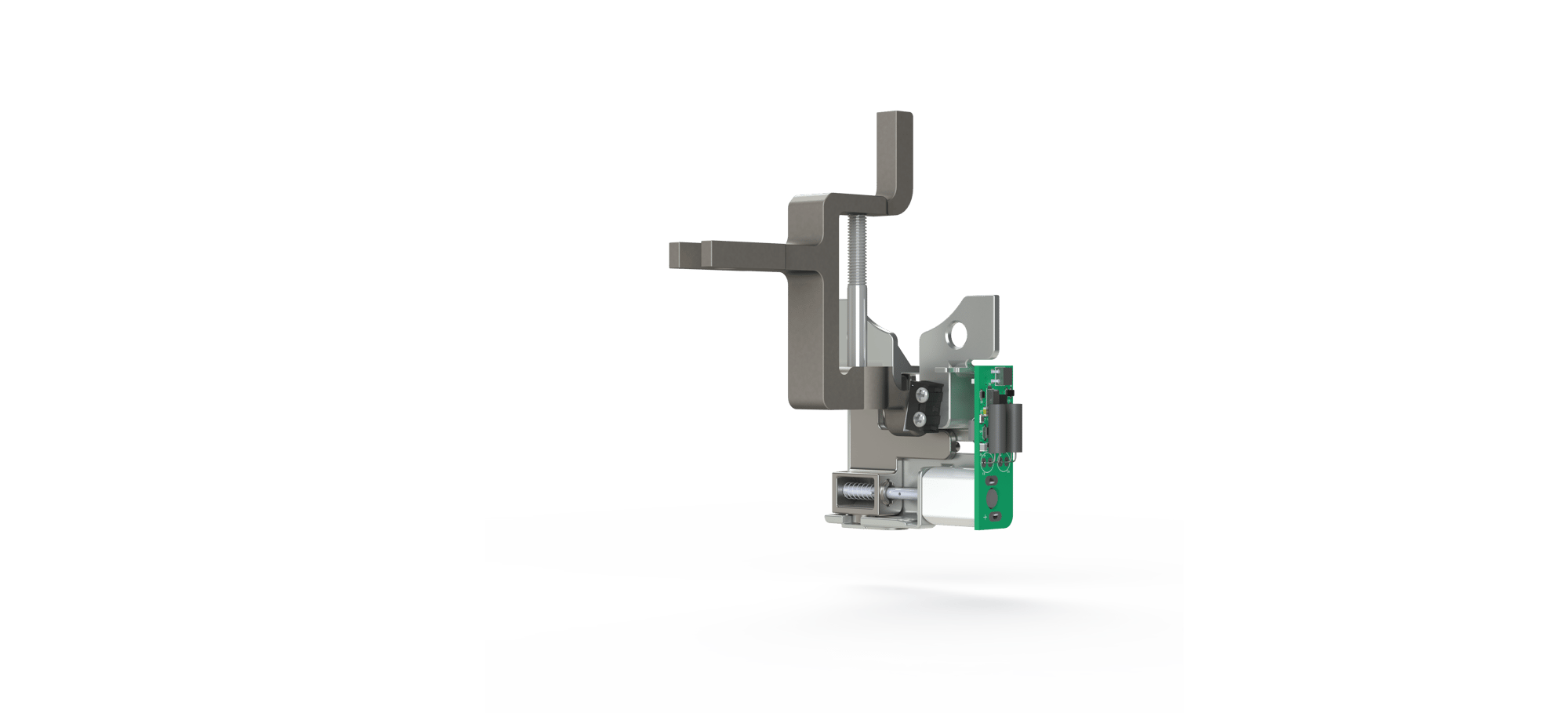

ETK-M-VD996 Exit Trim Kit for Von Duprin 996L

View the product page

Official ETK-M-VD996 listing on commandaccess.com — cutsheets, specs, and add-ons.

Open the product page →

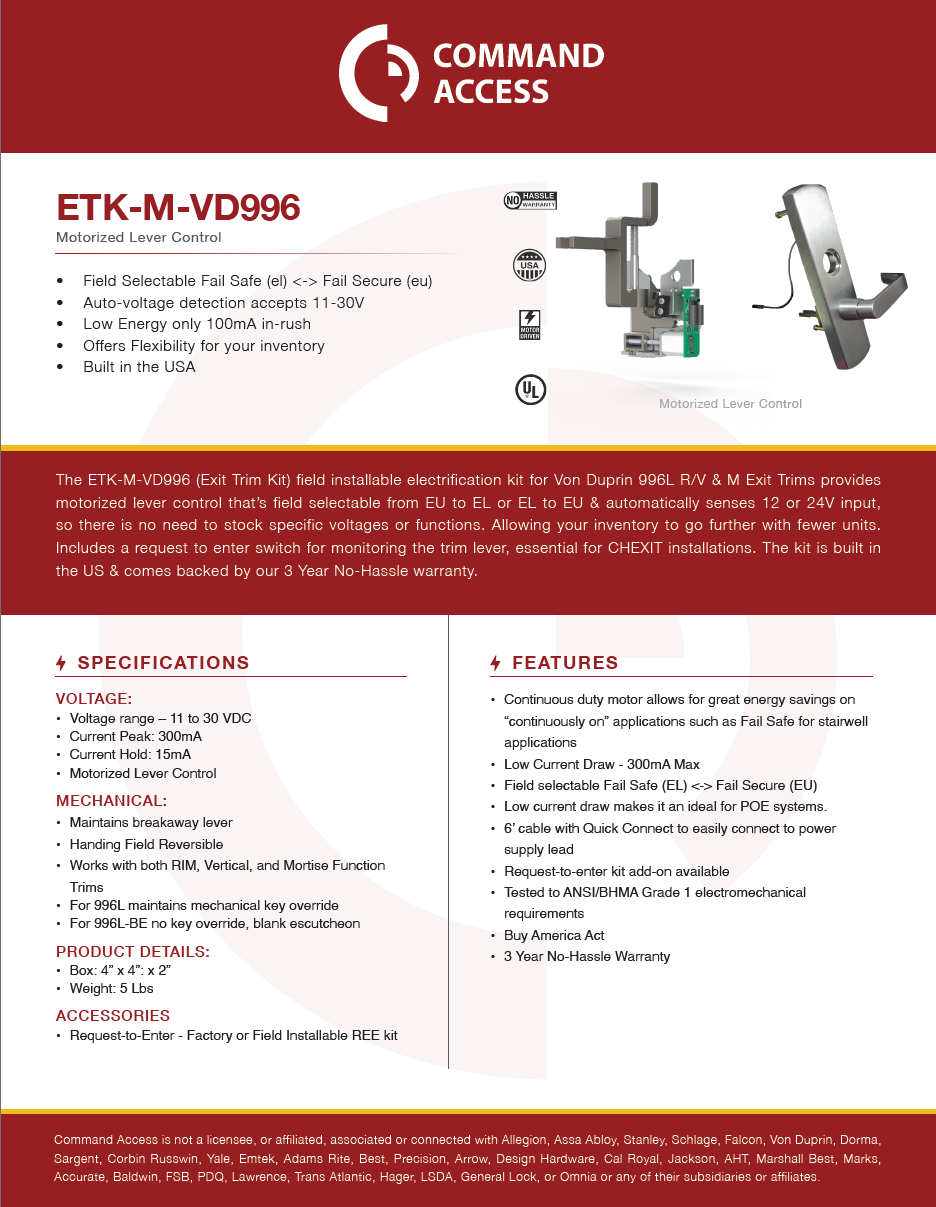

View cutsheet

Specs, features, and ordering details for the ETK-M-VD996 motorized lever control (PDF).

Open the cutsheet →
