We thought you all would get a kick out of these pictures taken on a job site. They are prime examples of how NOT to install a Door Loop or Power Supply. Photos courtesy of Sean Hamilton.
Here’s some answers to some of the frequent questions I get about the Command Access PD10.
Q1. What does the PD10 offer?
A1. The PD10 is a reliable store front exit device that is available in vertical rod (CVR), and RIM designs.
Q2. What does the PD10 replace?
A2. The PD10 is a retrofit to the Dor-O-matic 1690/1790 series and the First choice 3670/3790 series devices. No need to change rods or drill new holes.
Q3. What finishes does the PD10 come in?
A3.This unit is available in Aluminum (628) and Duro finishes (313).
Q4. Is the PD10 available with a motor?
A4. Yes, we are now offering this model with a motor. This option will offer a quiet, fast and low current draw solution for any area that requires reduced noise levels.
Please leave your comments below.
james · PD10 · tech support · tech talk
I make sure to take note of every Tech Support call I get and I’ve compiled a list of the the most frequent questions asked. I’ll be posting them every few weeks as a resource to you all. Here’s a few questions & answers about the PS2 Power Supply I wanted to share with everyone.
Q1. What is solid state design and why is it important?
A1. Solid state eliminates the need for mechanical relays and is a reliable electrical system.
Q2. Can I wire several devices to fire together off of one input from a single access control device?
A2. Yes, the PS2 can fire two devices when a jumper is used from the positive of input 1 to the positive of input 2.
Q3. Does your PS2 power supply come with a fire link?
A3. Yes, the PS2 is equipped with a fire link to make wire to any fire alarm system easy.
Q4. Does your PS2 come with a battery back-up option?
A4. Yes, if ordered as a PS2BB, it will come with wiring kit to allow for battery back-up installation. As with all our battery back-up power supplies batteries are not included.
Please feel free to leave your comments below.
james · power supply · PS2 · PS2BB · tech talk
Here’s a little preview of something we’re working on at the moment – a modification of a european lock in the French embassy.
I really love my job as Tech Support and the fact that I get to talk to a lot of you makes it even better. It’s our conversations that push me to know about each and every product we carry very intimately – ha. So I wanted to talk a little about the PM/PWM technology.
There seems to be questions about that product line all too often. So here’s a list of the most frequently asked questions:
Q1. Can I use this power module on any panic device?
A1. An application chart is available on our website. Click here to view.
Q2. Can I use this power module with any power supply?
A2. Must be used with a 24VDC regulated power supply.
Q3. The unit is plugged in, but not operating. Is it broken?
A3. Most likely it’s not broken. The PM/PWM unit is polarity sensitive; switch Red and Black wires.
Q4. The PM unit fires, but does not hold. Why is it doing that?
A4. The solenoid may be out of adjustment or if in use with a rod device application, the rod may be bottoming out before the solenoid is seated.
I’ll do my best to have more questions & answers in each and every email newsletter. Thanks for dropping by and feel free to leave a comment or question below and I’ll reply as soon as I see it.
answers · james · pm/pwm · questions · tech support · tech talk

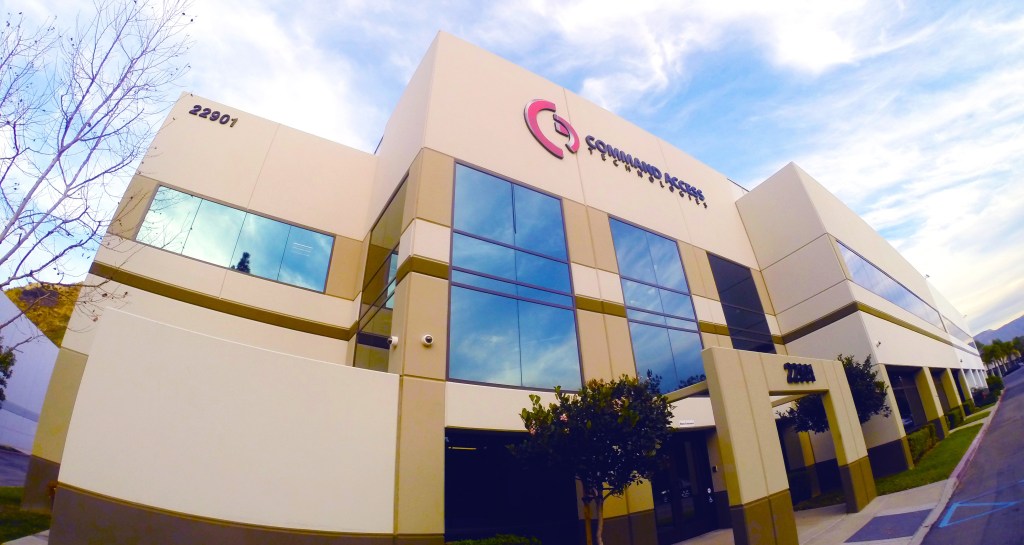

Here’s a few photos of the new building as we were getting all set up and running.
better · bigger · new building
Our Big Move has begun and we want to thank you all in advance for your patience as we transition to our new facility between May 3rd – 14th. We will do our very best to stay on top of all orders to make this as smooth as possible for everyone. Please make note of the new mailing & shipping address:
Command Access Technologies
22901 La Palma Ave
Yorba Linda, CA 92887
Our toll free phone number will remain the same 1-888-622-2377 throughout the entire process. If you experience any phone issues during the time we transfer the phone lines over to the new facility, please email ls@commandaccess.com and we will get back to you as soon as possilbe. We know this move is taking us in the right direction as we grow to fill your industry needs.
No tags
No tags
Come one, come all.
You’re just in time to witness the death defying feat of an old PS2 BB. Suspended 10 feet in mid-air, dangling above a sure death, this brave Power Supply laughs in the face gravity.
On a more serious note…WTH?!? People, this is not the way to install a Power Supply…any brand Power Supply. Thanks Bryan Nicholas for supplying these photos.
bad install · do nots · hanging · power supply · PS2 BB · trapeze
Thanks Bryan Nicholas for sending us this amazing Power Transfer install photo!
